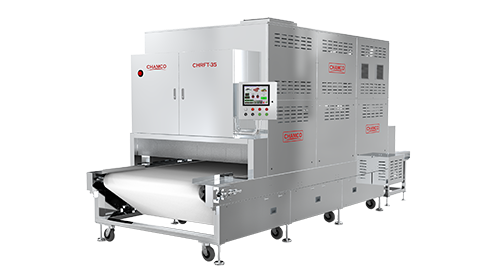

CHRFT-20, 35, 70
Radio Frequency Defrosting Machine (Conveyor Type)
본문
Korean Intellectual Property Office
K-Innovative Product
Product Features
- Able to fill the order quickly with improved quality due to speedy
defrosting period (20-30 minutes).
- As the gap in temperature between the inside and outside is within
±1.5°C, defrosting is excellent regardless of the thickness of food.
- During the defrosting, the machine prevents loss of nutrients and improves yield rate.
- Able to defrost in packages without any water waste.
- It prevents secondary pollutants as it doesn’t need to use water.
- It improves productivity and minimizes the defrosting process with
quick and equalized defrosting quality.
-
Insert Box
-
Eject after defrosting (20 minutes)
-
-2.2°C after defrosting
-
Mackerel after washing
Product Specifications
MODEL
POWER
DIMENSION : L×W×H(mm)
kg
CAPACITY
TARGET
FISH
(-18℃ to -4/-3℃, 25MIN)
BEEF
(-18℃ to -5/-3℃, 25MIN)
CHRFT - 20
3P×380V×3~30KW
4000×1500(1800)×2600
1,000KG
240~300KG/HR
400~500KG/HR
Frozen Products
CHRFT - 35
3P×380V×3~45KW
4700×1800(2100)×2600
1,200KG
500~600KG/HR
800~1,000KG/HR
CHRFT - 70
3P×380V×13~80KW
6400×2200(2500)×2600
1,800KG
1,000~1,200KG/HR
1,500~2,000KG/HR
* Size adjustments are available upon request.
Product Video
Product Video
Product Video
Catalogue
