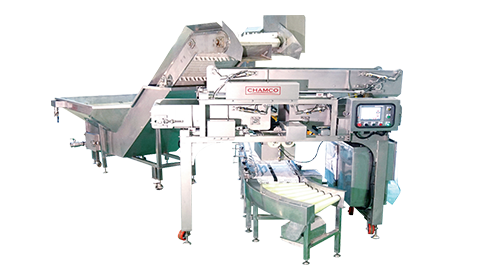

CHAW-1000
Auto Weighing Machine
본문
Korean Intellectual Property Office
Product Features
- Fish are transported using a hopper and rising conveyor, and the set weight is put into the box through the automatic alignment function.
- Work efficiency is greatly improved as it is automatically aligned as it is put into the box, and overflow is minimized when the box is put in by the lifting guide.
- Weighing precision has been improved with three weighing departments, and weighing speed has been significantly increased (world's highest level).
- It has high precision using 4 electronic load cells and is convenient to operate using a touch screen.
Product Specifications
| POWER | DIMENSION : L X W X mm/KG | CAPACITY | Allowable weight | TARGET FISH |
|---|---|---|---|---|
| Rising conveyor 3P×380V×2.3KW | 4700×1500×2500(450kg) | 40~14 BOX/MIN | 10~25KG/BOX | All kinds of fish |
| main body | 2170×950×1950(300kg) | |||
| Box transfer conveyor 3P×380V×0.18KW | 750×770×780(120KG) |
