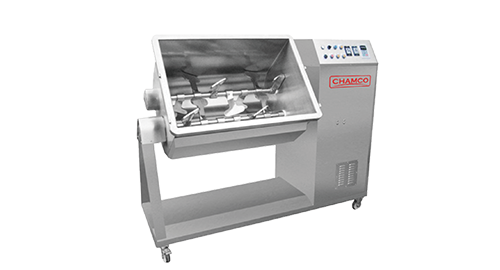

CHMI-150
Mixer
본문
Product Features
- It is convenient because the operator can set the mixing time.
- It is able to mix different type of ingredient effectively such as coffee, milk powder, flour, rice, vegetable, and pork.
- It is able to mix effectively thanks to various type of bar such as T-bar, double T-bar, and ribbon type bar.
- It can be discharged by hydraulic dumper, so it is easy to discharge and clean.
-
-
-
Product Specifications
MODEL
POWER
DIMENSION : L×W×H ㎜, KG
DRUM SIZE : L×W×H ㎜
CAPACITY(L/CYCLE)
CHMI-60
3P×380V×0.75KW
1200 × 540 × 970
680 × 410 × 500
60
CHMI-90
3P×380V×1.5KW
1450 × 540 × 970
930 × 410 × 970
90
CHMI-150
3P×380V×2.3KW
1350 × 630 × 1250
900 × 550 × 650
150
CHMI-200
3P×380V×3.8KW
1900 × 630 × 1250
1200 × 550 × 650
200
CHMI-300
3P×380V×5.7KW
1730 × 840 × 1400
950 × 760 × 850
300
CHMI-400
3P×380V×5.7KW
2000 × 840 × 1400
1200 × 760 × 850
400
CHMI-500
3P×380V×5.7KW
2280 × 840 × 1400
1500 × 760 × 850
500
Product Video
Catalog
[이 게시물은 최고관리자님에 의해 2025-04-09 18:45:29 농산물 가공기계에서 이동 됨]
댓글목록
등록된 댓글이 없습니다.
회원로그인
회원가입
-
CHMI-150
Mixer
- It is convenient because the operator can set the mixing time.
- It is able to mix different type of ingredient effectively such as coffee, milk powder, flour, rice, vegetable, and pork.
- It is able to mix effectively thanks to various type of bar such as T-bar, double T-bar, and ribbon type bar.
- It can be discharged by hydraulic dumper, so it is easy to discharge and clean.
-
-
-
본문
Product Features
Product Specifications
| MODEL | POWER | DIMENSION : L×W×H ㎜, KG | DRUM SIZE : L×W×H ㎜ | CAPACITY(L/CYCLE) |
|---|---|---|---|---|
| CHMI-60 | 3P×380V×0.75KW | 1200 × 540 × 970 | 680 × 410 × 500 | 60 |
| CHMI-90 | 3P×380V×1.5KW | 1450 × 540 × 970 | 930 × 410 × 970 | 90 |
| CHMI-150 | 3P×380V×2.3KW | 1350 × 630 × 1250 | 900 × 550 × 650 | 150 |
| CHMI-200 | 3P×380V×3.8KW | 1900 × 630 × 1250 | 1200 × 550 × 650 | 200 |
| CHMI-300 | 3P×380V×5.7KW | 1730 × 840 × 1400 | 950 × 760 × 850 | 300 |
| CHMI-400 | 3P×380V×5.7KW | 2000 × 840 × 1400 | 1200 × 760 × 850 | 400 |
| CHMI-500 | 3P×380V×5.7KW | 2280 × 840 × 1400 | 1500 × 760 × 850 | 500 |
