Hopper and Flipping Device
본문

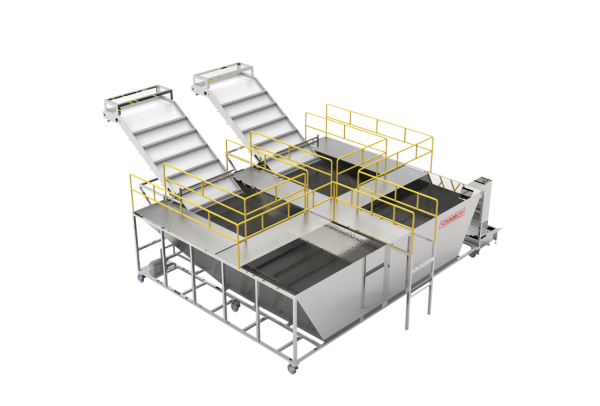

Hopper Lifting Conveyor
Product Features
- This is a Hopper lifting conveyor that temporarily stores mackerel transferred from a
transport vessel and continuously feeds a consistent amount to the sorter.
- A maintenance platform is installed above the hopper, allowing the operator to
manage the fish flow smoothly into the sorter.
- The catch often contains crushed ice used to maintain freshness, and the system
includes a function to separate and discharge the mixed ice.
- Large doors are installed on both the left and right lower sides of the hopper,
enabling easy removal of residual by-products after sorting and facilitating cleaning.
Product Specifications
DIMENSION : L×W×H ㎜
CAPACITY
POWER
750L x 4600W x 4100H
8000ℓ
3P x 380v x 6.2kw

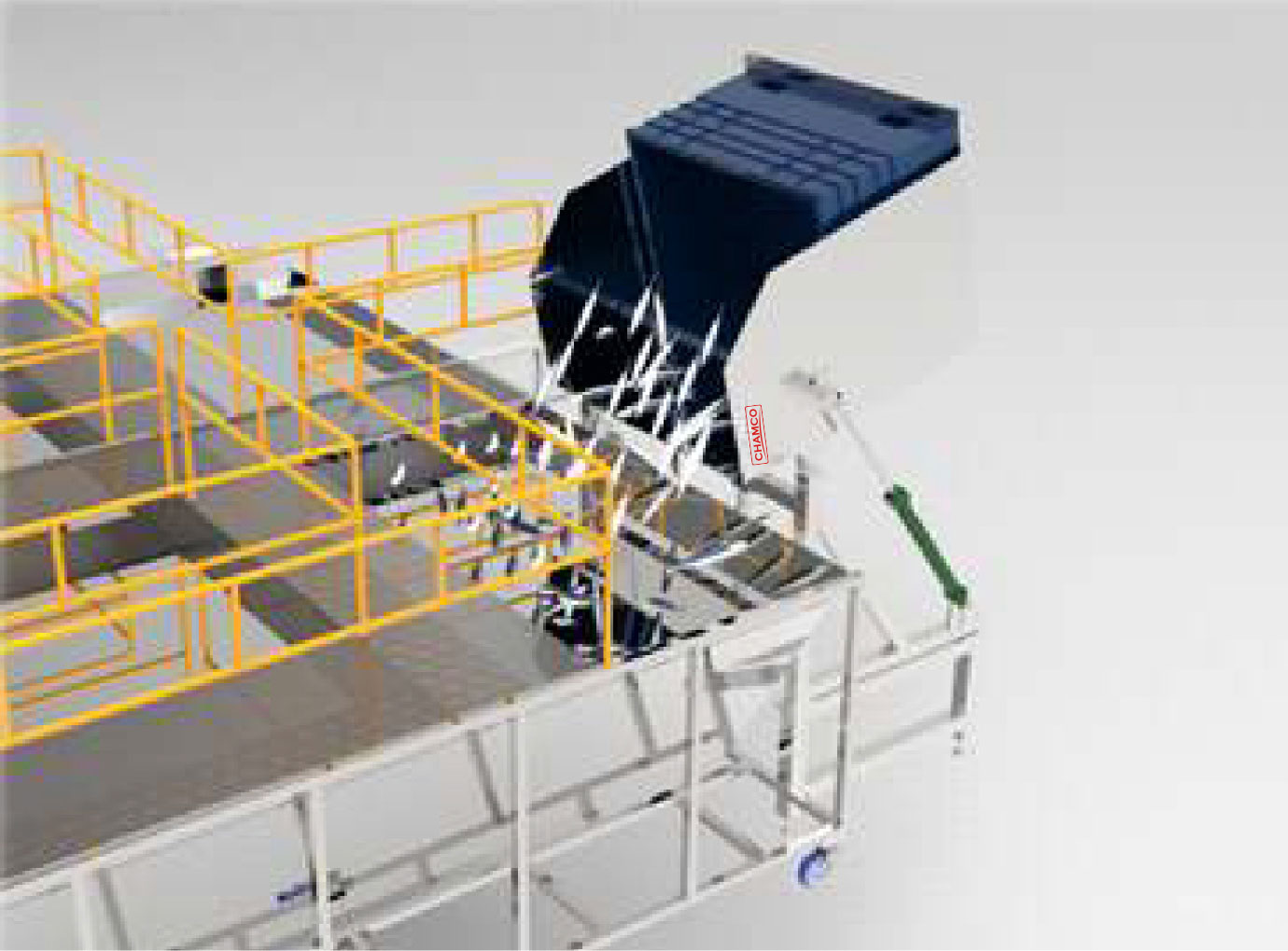

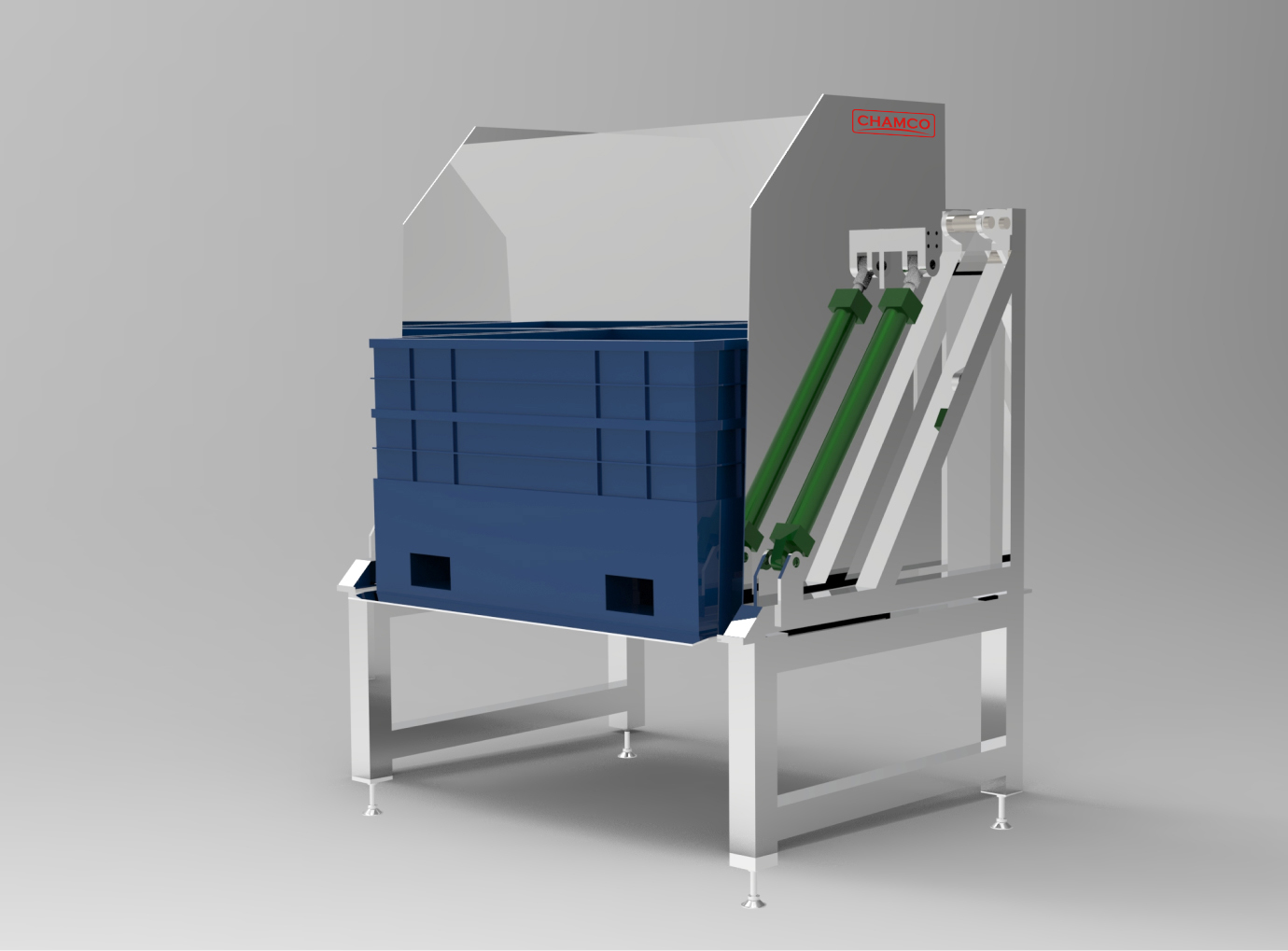

Fish Tub Dump (Flipping Device)
Product Features
- After the catch is placed in a Fish tub (slush
container) for transport, the tub is loaded onto the
dumper. A hydraulic cylinder then lifts and tilts the
tub to discharge the contents into the hopper.
Product Specifications
DIMENSION : L×W×H ㎜
POWER
1500L x 2300W x 2400H
3P x 380v x 2.2kw
- PrevMass Automated Sorting and Packaging System_Layout 25.04.30
- NextRoller-Type Sorter 25.05.07
댓글목록
등록된 댓글이 없습니다.
회원로그인
회원가입
-
Hopper and Flipping Device
- This is a Hopper lifting conveyor that temporarily stores mackerel transferred from a transport vessel and continuously feeds a consistent amount to the sorter.
- A maintenance platform is installed above the hopper, allowing the operator to manage the fish flow smoothly into the sorter.
- The catch often contains crushed ice used to maintain freshness, and the system includes a function to separate and discharge the mixed ice.
- Large doors are installed on both the left and right lower sides of the hopper, enabling easy removal of residual by-products after sorting and facilitating cleaning.
- After the catch is placed in a Fish tub (slush container) for transport, the tub is loaded onto the dumper. A hydraulic cylinder then lifts and tilts the tub to discharge the contents into the hopper.
- PrevMass Automated Sorting and Packaging System_Layout 25.04.30
- NextRoller-Type Sorter 25.05.07
본문
Hopper Lifting Conveyor
Product Features
Product Specifications
| DIMENSION : L×W×H ㎜ | CAPACITY | POWER |
|---|---|---|
| 750L x 4600W x 4100H | 8000ℓ | 3P x 380v x 6.2kw |
Fish Tub Dump (Flipping Device)
Product Features
Product Specifications
| DIMENSION : L×W×H ㎜ | POWER |
|---|---|
| 1500L x 2300W x 2400H | 3P x 380v x 2.2kw |
