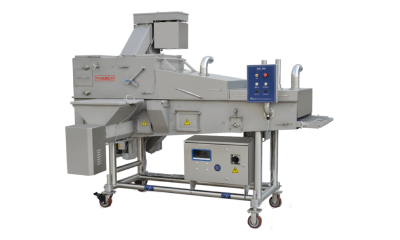

CHSFJ400, 600, 1000-VI
Preduster
본문
Product Features
- It coats the bottom of the products by the layer of the flour on the
conveyor belt.
- It coats the surface of the products by the unique belt pouring the
flour evenly.
- Using the air flow system which is easily to connect to the preduster.
- It can collect the flour generated from the falling of the flour inside and
recycle it.
- Separate the air and the flour, suck the clean air onto the products ot
blow off the extra flour.
Product Specifications
MODEL
POWER
DIMENSION : L×W×H ㎜,KG
BELT WIDTH
BELT SPEED
INPUT HEIGHT(MM)
OUTPUT HEIGHT(MM)
CHSFJ400-VI
2.93KW
2655×835×2150
400
3~15m/min (adjustable)
870~970
1000±50
CHSFJ600-VI
2655×1035×2150
600
CHSFJ1000-VI
4.9KW
2655×1435×2150
1000
Catalogue
