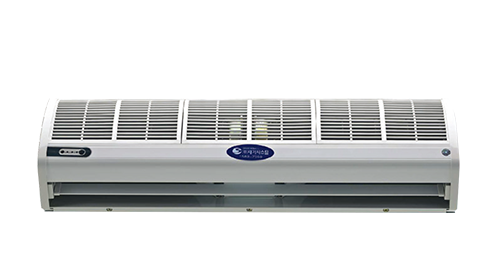

CCR-900
Air Curtain with Remote Control
본문
Product Features
- Three-level wind speed control allows optimal airflow selection.
- Equipped with waterproof epoxy-coated PCB.
- Compatible with automatic sensors (limit switches).
- Lightweight aluminum casing with a sleek design.
- Damper can be adjusted up to 50 degrees to adapt to external conditions.
- Suitable for use in cold storage and high-humidity environments.
Product Specifications
MODEL
DIMENSIONS
POWER(V/Hz)
AIR SPEED(M/S)
POWER CONSUMPTION(W)
NOISE LEVEL(dB)
AIR VOLUME(m³/h)
WEIGHT(KG)
AIR BARRIER HEIGHT(m)
CCR-900
900×218×190
220/60
9/11/13
154(LO) / 176(MI) / 198(HI)
60 - 65
1108 -1600
10.0
2.0 - 2.4
CCR-1000
1000×218×190
1198(LO) / 220(MI) / 242(HI)
62 - 68
1239 - 1790
10.6
CCR-1200
1200×218×190
220(LO) / 264(MI) / 308(HI)
64 - 70
1530-2211
12.5
Catalog
