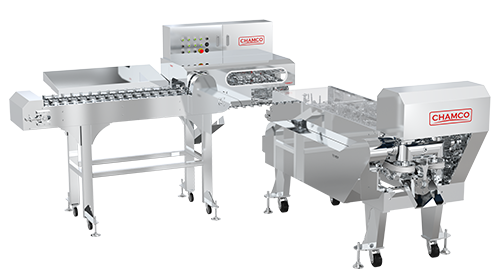

CHHT-300, CHFG-350
Deheading & Tail Cutting Machine / Continuous Filleting & Gutting Machine
본문
Korean Intellectual Property Office
Product Features
- The product is automatically carried into the filleting machine after
the head and tail are cut off.
- This machine has high productivity as it both fillets and guts.
- Breastbone removal fillets and Breastbone existing fillets can be
selectively used with simple adjustments.
- This machine is easy to clean, and the covered openings are hygienic.
- The circular blades can be disassembled, reassembled, and set up
easily, making blade maintenance and replacement simple and
ensuring consistently high yield.
-
Headed mackerel
-
Boneless mackerel fillet
-
Mackerel fillet with rib bones
Product Specifications
POWER
DIMENSION : L×W×H ㎜,KG
CAPACITY
TARGET
Deheading 3P×220/380V×0.75KW
2200×1400×1500(1050KG)
60~80fishes/min
Mackerel
Filleting&Gutting 3P×220/380V×1.5KW
2170×945×1200 (800KG)
