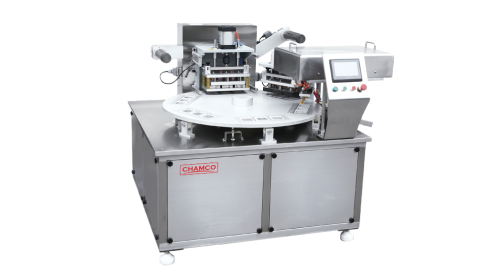

CHTS-100
Rotary Tray Sealer with Optional MAP
본문
Product Specifications
MODEL
FILM SIZE
AIR PRESSURE
CAPACITY
POWER
DIMENSION : L×W×H ㎜, KG
CHTS-100
130-160mm
0.6-0.8mpa
3~5cycles/min
3P,380V,60Hz,4.5kw
3940x1100x1930
Product Features
- Simply place the tray with the product onto the mold, and sealing is performed automatically with automatic discharge.
- A thick silicone gasket ensures strong sealing and excellent cutting performance.
- A single punching and cutting action provides a clean finish with no tearing.
- The operating speed can be adjusted according to the manual tray loading speed, with a maximum of 3–4 cycles per minute.
- MAP (Modified Atmosphere Packaging) gas flushing is available as an option.
